Guide TE421 Thermal Monocular 25mm

  Guide TE421 Thermal Monocular 25mm

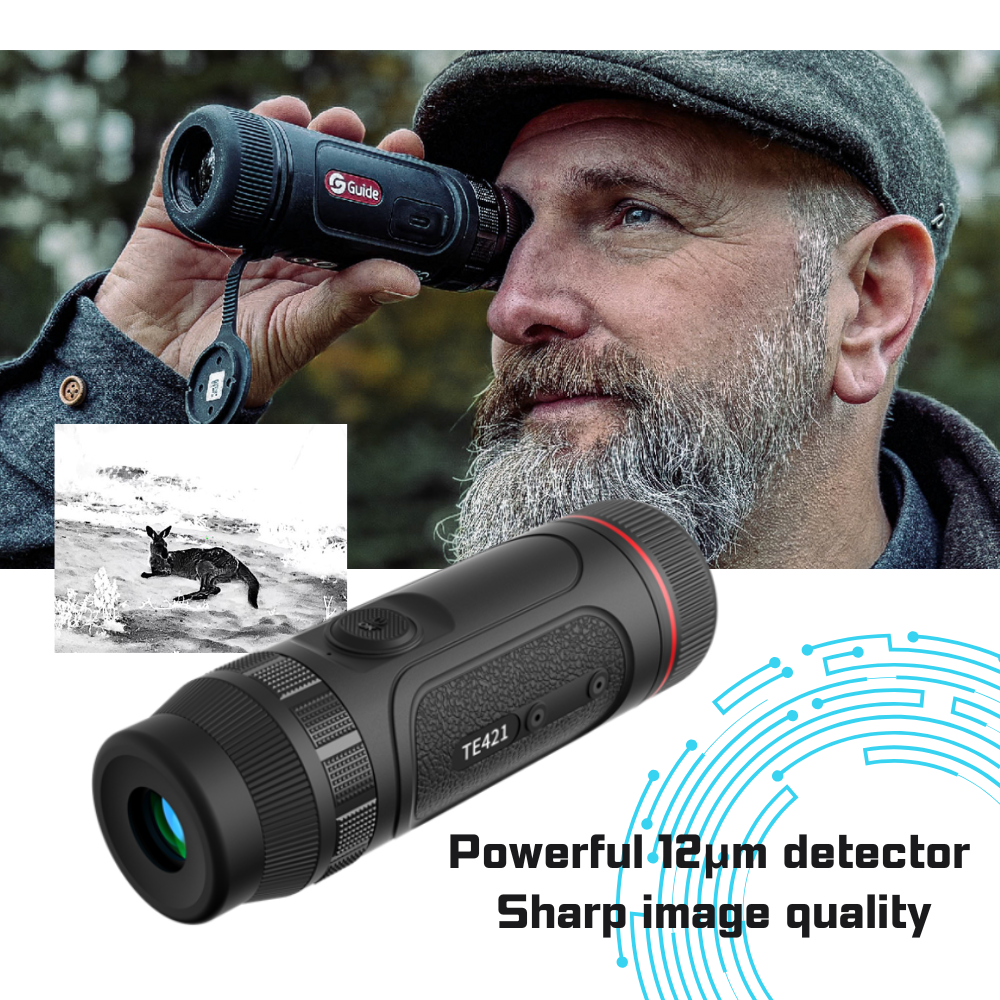

The TE421 Handheld Thermal Imaging Monocular is a compact, ultra-lightweight night vision device, perfect for adventurers and professionals alike. Weighing just 295g, it’s designed for effortless portability without compromising on performance. Powered by a high-sensitivity 400×300@12μm infrared detector, it delivers clear thermal imaging even in challenging conditions. With a quick 10-minute charge providing up to an hour of continuous use, you’ll be ready for any outdoor exploration. Whether you’re navigating the wilderness or conducting night-time inspections, the TE421 offers unbeatable value, combining reliability, precision, and ease of use.

Guide thermal monoculars stand out among competitors due to their superior image clarity, faster refresh rates, and dependable performance in a wide range of environments. Compared to others, Guide typically offers more refined image processing and a more user-friendly interface at a more competitive price point without sacrificing key features. Guide devices tend to deliver better battery life and more consistent thermal accuracy. Altogether, Guide combines reliability, innovation, and value, making it a top choice for professionals and outdoor enthusiasts alike.

Features:

• Ultra-Lightweight: Only 200+ grams, effortlessly portable.
• Comfortable Viewing: 0.32-inch screen for clear and smooth visuals.
• Extended Battery: Up to 6 hours of use, 20W quick charging for worry-free power.
• Audio-Visual Sync: Record video with synced audio.
• Smooth Operation: One-button, one-ring design for seamless control.
• Rugged Design: IP67-rated for all-weather durability.
• Smart Connectivity: Control via mobile APP, OTA firmware updates.

Specifications:

• Sensor
  • Type: Uncooled VOx Infrared Detector, 8 to 14μm
  • Resolution: 400×300@12μm
  • NETD: <25mK
  • Frame rate: 50Hz
• Lens
  • Objective lens: 25mm, F1.0
  • Field of view: 11°×8.2°
  • FOV m@100m: 19×14
  • Magnification: 1.9x~7.6x
  • Detection range: 1300m/1400yd
  • Focus; Manual
